LogicWeave
Core
The all-in-one hardware companion. A 2 channel programmable power supply, logic interface, and multimeter—unified by the LogicWeave protocol.
100W USB PD
High-power USB-C input handling standard Power Delivery protocols to drive the entire system.
Dual PSU Outputs
Two independent programmable rails. Adjustable 1V - 17V at up to 3A each.
20 GPIO Pins
Standard 2.54mm headers exposing 20 GPIOs for direct interfacing with your prototypes.
Built-in Multimeter
Measure DC Voltage (up to 24V) and Resistance directly on the board without external tools.
Pro Connectivity
Equipped with standard Banana Jacks for PSU outputs and Probe connections.
Web Control UI
Integrated web server. Monitor voltage rails and log logic data wirelessly from any browser.
Closer Look

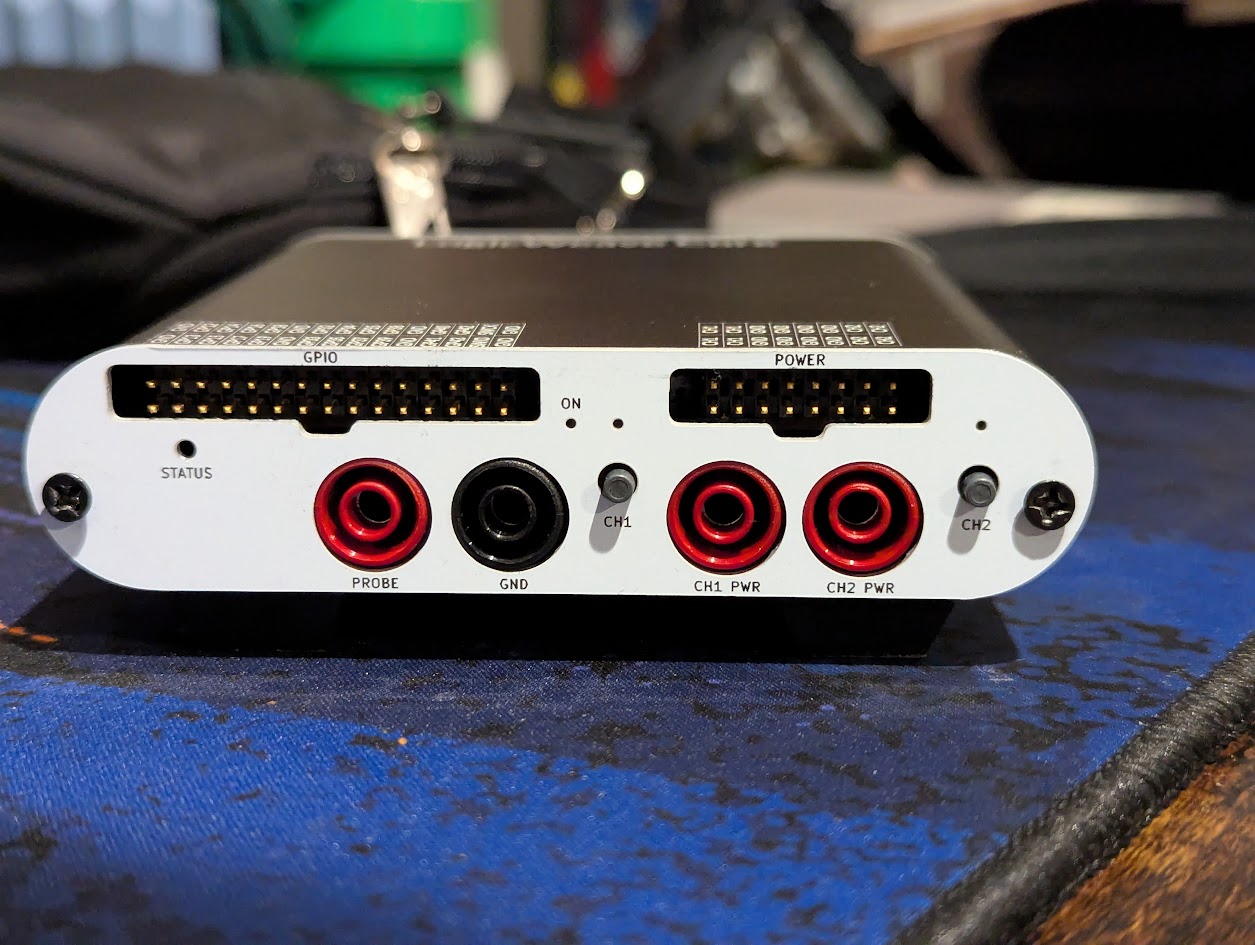

Interface & Control

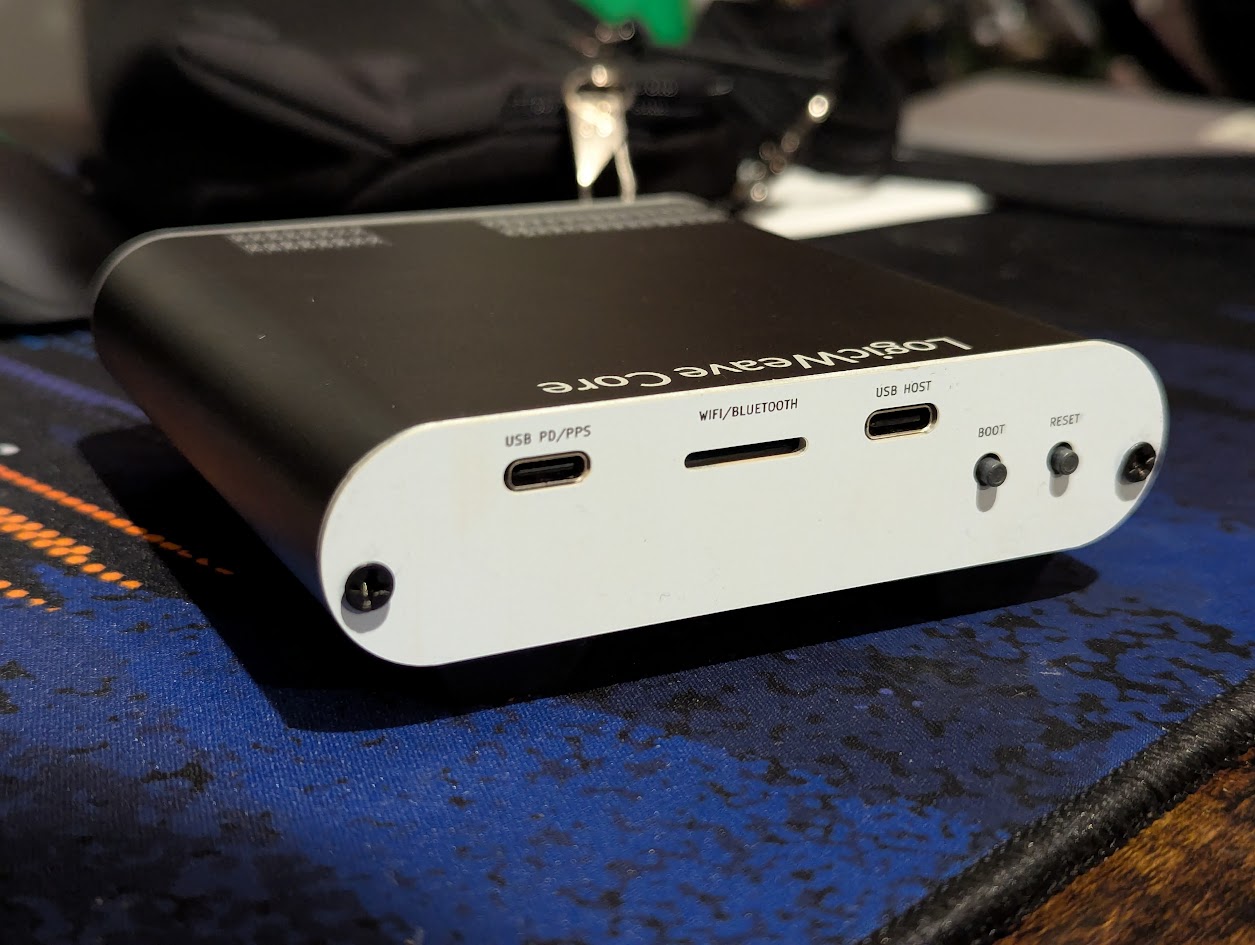

Power & Connectors

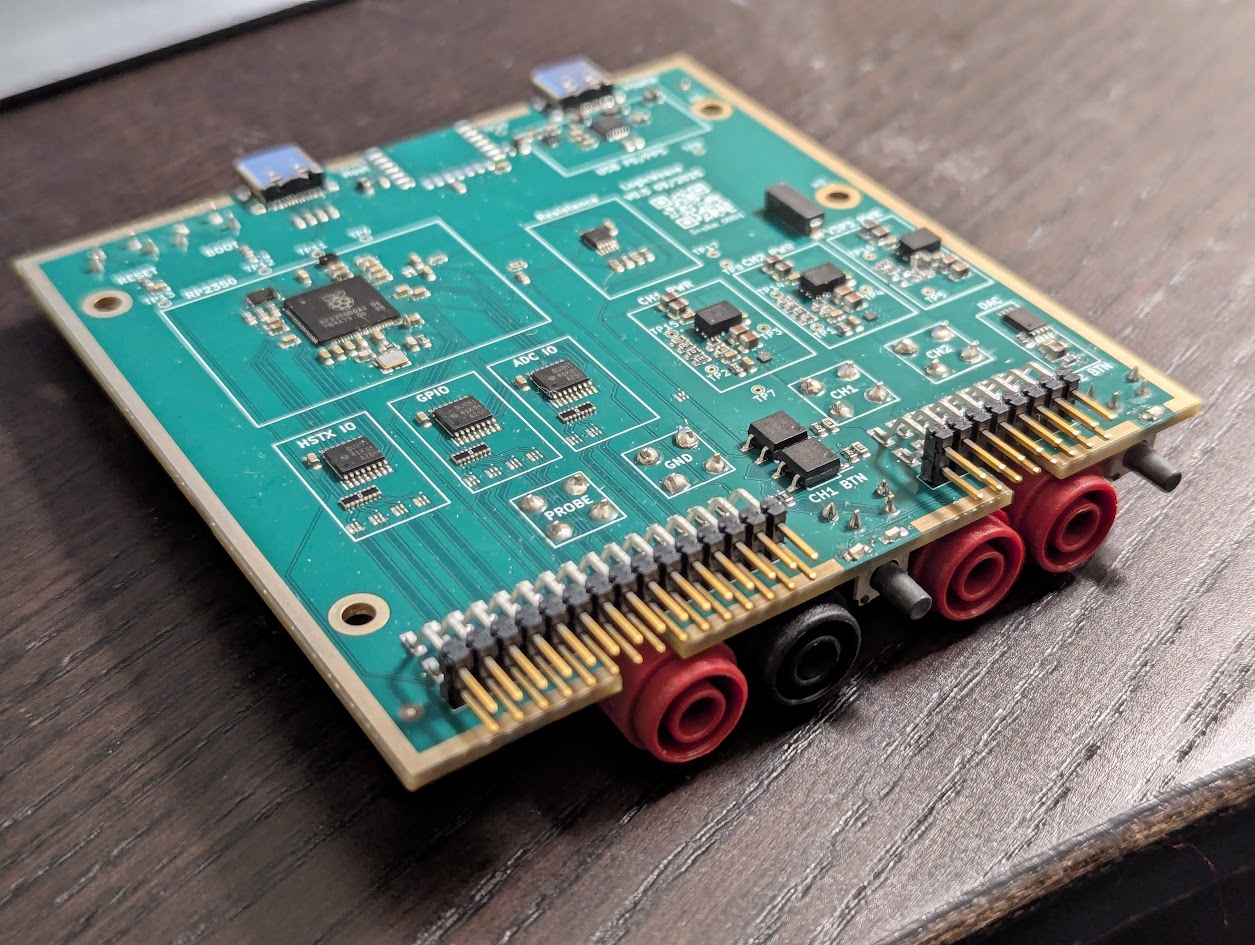

Internal Architecture
Ready to upgrade your bench?
LogicWeave Core is currently in limited production. Join the waitlist to secure your unit.
